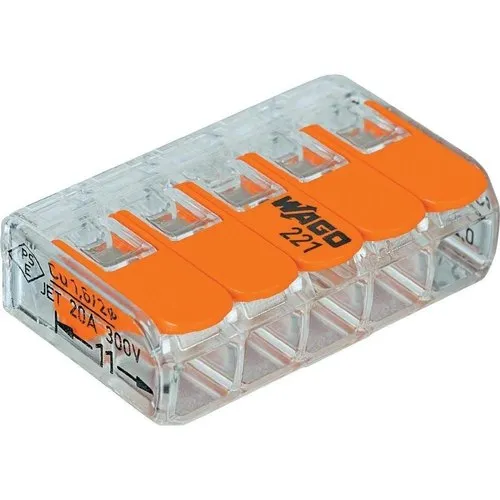

WAGO 221 5 Way Compact Splicing Connector

Pitch Size 0.5 mm
Connectivity Type Female
Usage/Application Audio & Video
Connectable Conductor Materials Copper
Solid Conductor 0,2 -4 mm2 / 24 -12 AWG
Rated Surge Voltage (II/2) 4 kV
Actuation Type Lever
Surrounding Air Temperature (Operation) 85 Degree Celsius
Depth 18.8 mm / 0.732 inch
Nominal Voltage (II/2) 450 V
Continuous Operating Temperature 105 Degree Celsius
Fine-Stranded Conductor 0,14 -4 mm2 / 24 -12 AWG
Strip Length 11 mm / 0.43 inch
Brand WAGO
Width 30 mm / 1.181 inch
Height 8.6 mm / 0.327 inch
Weight 4g
Rated Current 32 A
Rated Current UL (Use Group C) 20 A
Ratings per EN 60664
Model Number 221-415
Temperature Marking Per EN 60998 T85
Rated Voltage UL (Use Group C) 600 V
Nominal Cross-Section 4 mm2

Compact Splicing Connector; For All Conductor Types; Max. 4 Mm²; 5-conductor; With Levers; Transparent Housing; Surrounding Air Temperature: Max 85°c (T85); 4,00 Mm²; Transparent

Benefits:

  • Ease of use pull the lever up, insert a conductor and push the lever back down
  • Available as 2-, 3- and 5-wire connectors
  • Easily terminate conductors from 0.14 to 4 mm
  • Connect solid, stranded and fine-stranded conductors
  • Time savings for installers and device manufacturers
  • Quickly install devices with higher levels of power consumption
  • Safely install long cable runs with larger conductor cross sections
  • Mounting carrier for installation conforms to standards
  • Custom carriers are possible
Category:

The WAGO 221-413 is a compact splicing connector designed for electrical installations. Here’s a general description:

  • Type: 5-Way Compact Splicing Connector
  • Features:
    • Compact Design: The 5-way version is compact, making it suitable for tight spaces.
    • Tool-Free Operation: It allows for quick and easy wire connections without the need for tools, using WAGO’s spring pressure technology.
    • Wire Compatibility: It supports a range of wire sizes, typically from 0.14 to 4 mm² (24 to 12 AWG).
    • Voltage Rating: It is designed to handle standard voltage ratings suitable for residential and commercial applications.
    • Insulation: The connector is made of high-quality, flame-retardant plastic, ensuring durability and safety.
    • Application: Ideal for connecting multiple wires in a variety of electrical applications, including lighting and power distribution systems.
